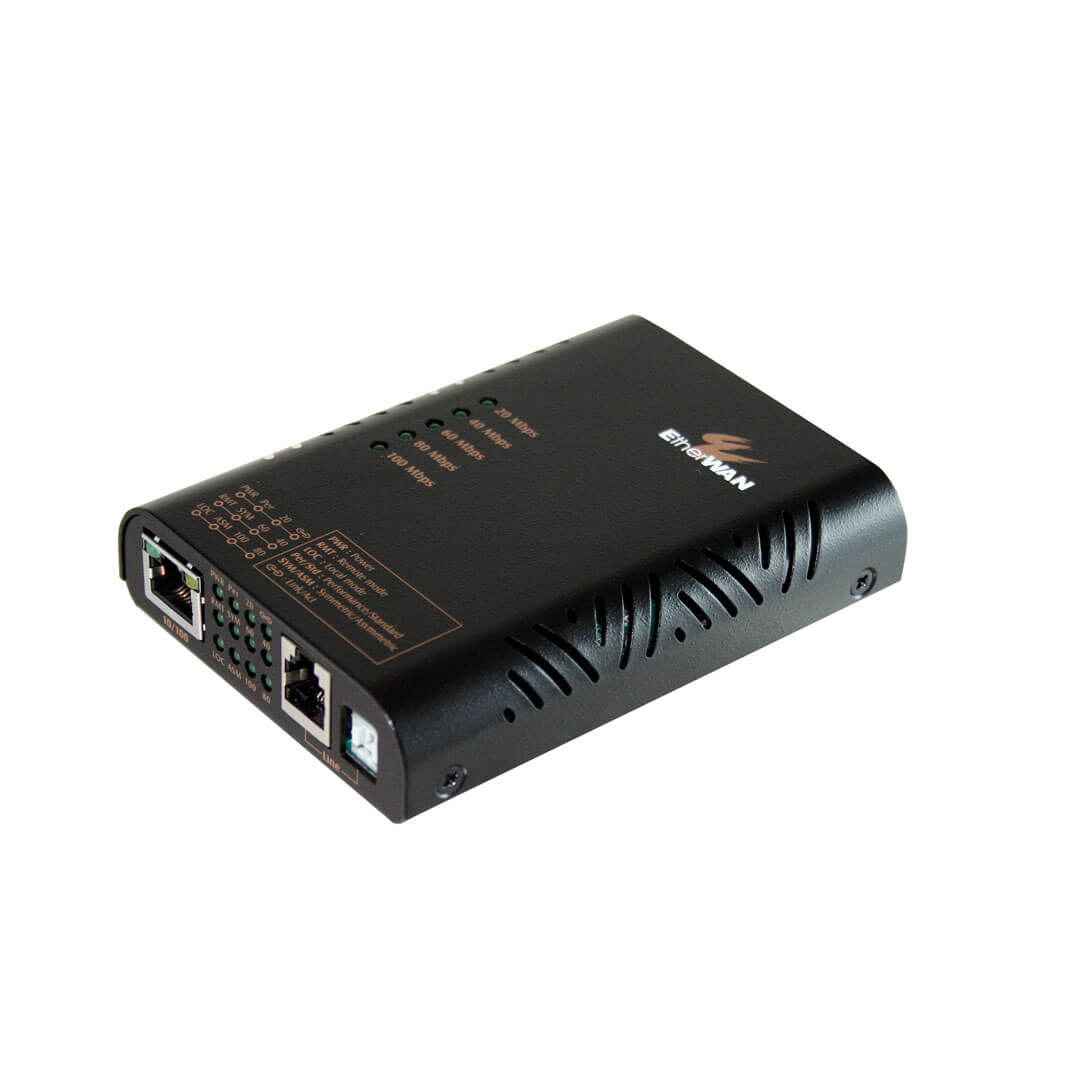

ED3501

ISO
• Manufactured in an ISO9001 facility

Safety
UL60950-1
EN60950-1
IEC60950-1

EMI
FCC Part 15B, Class A
VCCI, Class A
EN61000-6-4
EN61000-3-3

EMS
EN61000-6-2
• EN61000-4-2 (ESD Standards)
• EN61000-4-3 (Radiated RFI Standards)
• EN61000-4-4 (Burst Standards)
• EN61000-4-5 (Surge Standards)
• EN61000-4-6 (Induced RFI Standards)
• EN61000-4-8 (Magnetic Field Standards)

IEC60068-2-6 Fc (Vibration Resistance)
IEC60068-2-27 Ea (Shock)
FED STD 101C Method 5007.1 (Free fall w/ package)

Operating Temperature
• -20°C to 60°C (-4°F to 140°F)
Tested @ -20°C to 70°C (-4°F to 158°F)

Storage Temperature
• -20°C to 70°C (-4°F to 158°F)

Ambient Relative Humidity
• 5% to 95% (non-condensing)

Input Voltage
• 12VDC (DC Jack)


Power Consumption
• 4.56W max.
0.38A@12VDC


Protection
• Over current protection
• Reverse polarity protection
