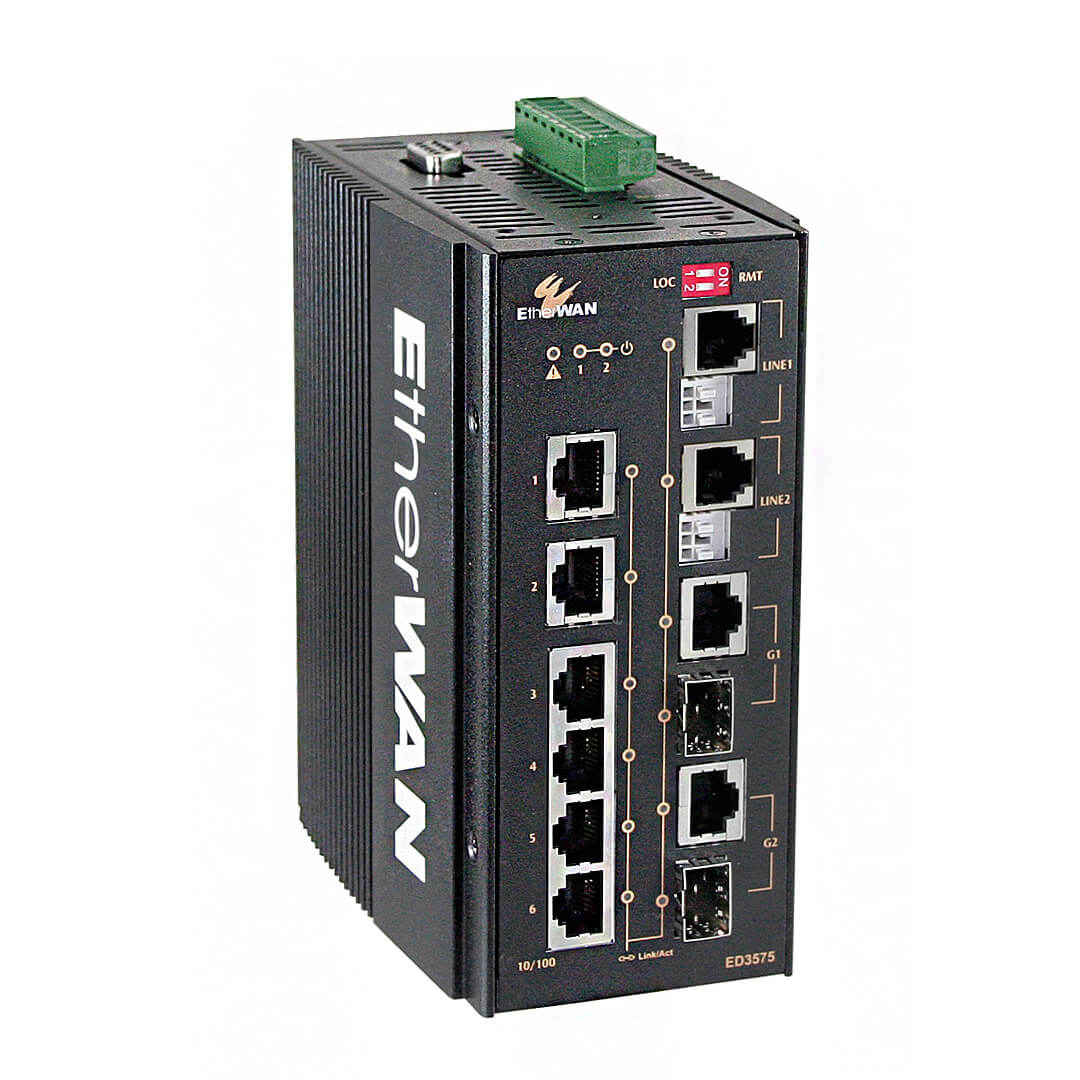

ED3575

ISO
• Manufactured in an ISO 9001 facility

Safety
UL 60950-1, UL 62368, IEC 60950-1, EN 60950-1

EMI
FCC Part 15B, Class A
VCCI, Class A
EN 55022
EN 61000-6-4, EN 61000-3-2, EN 61000-3-3

EMS
EN 61000-6-2
• EN 61000-4-2 (ESD Standards)
• EN 61000-4-3 (Radiated RFI Standards)
• EN 61000-4-4 (Burst Standards)
• EN 61000-4-5 (Surge Standards)
• EN 61000-4-6 (Induced RFI Standards)
• EN 61000-4-8 (Magnetic Field Standards)

Environmental Test Compliance
IEC 60068-2-6 Fc (Vibration)
IEC 60068-2-27 Ea (Shock)
FED STD 101C Method5007.1 (Free fall w/ package)

Industrial Compliance
NEMA TS2

Operating Temperature
• -40°C to 75°C (-40°F to 167°F)
Tested @ -40°C to 85°C (-40°F to 185°F)

Storage Temperature
• -40°C to 85°C (-40°F to 185°F)

Ambient Relative Humidity
• 5% to 95% (non-condensing)

Input Voltage
• 12 to 48VDC (Terminal Block)

Power Consumption
• 15.6W Max., 1.3A@12VDC
• 13.7W Max., 0.57A@24VDC
• 13.6W Max., 0.28A@48VDC

Protection
• Over current protection
• Reverse polarity protection
