ED3331

    ED3331

    Industrial 10/100BASE-TX Ethernet Extender over Coaxial Cable​

    Call for price
    Overview
    ED3331

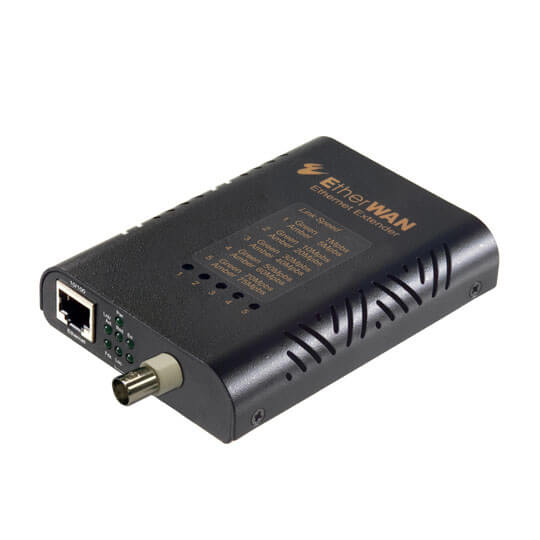

    Industrial 10/100BASE-TX Ethernet Extender over Coaxial Cable

    Power over link

    ISO
    • Manufactured in an ISO9001 facility

    Safety
    UL508

    EMI
    FCC Part 15B, Class A
    VCCI, Class A
    EN61000-6-3
    EN55022
    EN61000-3-3

    EMS
    EN61000-6-2
    • EN61000-4-2 (ESD Standards)
    • EN61000-4-3 (Radiated RFI Standards)
    • EN61000-4-4 (Burst Standards)
    • EN61000-4-5 (Surge Standards)
    • EN61000-4-6 (Induced RFI Standards)
    • EN61000-4-8 (Magnetic Field Standards)

    IEC60068-2-6 Fc (Vibration Resistance)
    IEC60068-2-27 Ea (Shock)
    FED STD 101C Method 5007.1 (Free fall w/ package)

    Operating Temperature
    • -10°C to 60°C (14°F to 140°F)

    Storage Temperature
    • -20°C to 70°C (-4°F to 158°F)

    Ambient Relative Humidity
    • 5% to 95% (non-condensing)

    Input Voltage
    • 12VDC

    Power Consumption
    • 5.76W Max. 0.48A @ 12VDC

    Protection
    • Over current protection
    • Reverse polarity protection


    • 425.34KB
    • PDF
