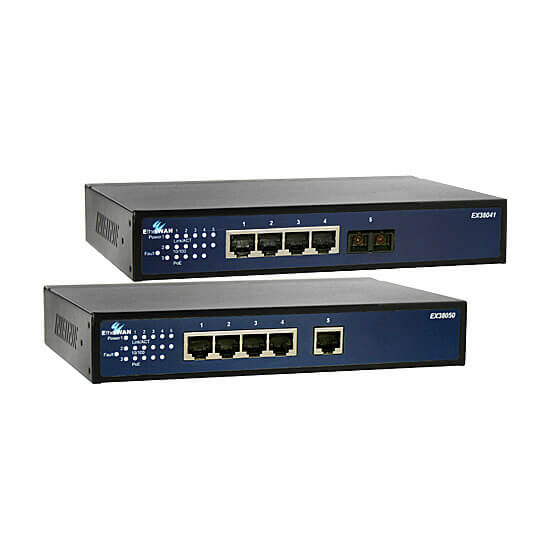

EX38000

ISO
• Manufactured in an ISO 9001 facility

EMI
FCC Part 15B, Class A
VCCI, Class A
EN 61000-6-4
EN 61000-3-2
EN 61000-3-2
EN 55022 Class A

EMS
EN 61000-6-2
• EN 61000-4-2 (ESD Standards)
• EN 61000-4-3 (Radiated FRI Standards)
• EN 61000-4-4 (Burst Standards)
• EN 61000-4-5 (Surge Standards)
• EN 61000-4-6 (Induced RFI Standards)
• EN 61000-4-8 (Magnetic Field Standards)

Environmental Test Compliance
IEC 60068-2-6 Fc (Vibration)
IEC 60068-2-27 Ea (Shock)
FED STD 101C Method 5007.1 (Free fall w/ package)

Industrial Compliance
NEMA TS2

Operating Temperature
• -10°C to 60°C (14°F to 140°F)
Tested @ -20°C to 70°C (-4°F to 158°F)

Storage Temperature
• -40°C to 85°C (-40°F to 185°F)

Ambient Relative Humidity
• 5% to 95% (non-condensing)

Input
• Redundant power inputs:
Terminal Block: 47 - 57VDC
DC Jack: 47 - 57VDC

Power Consumption
• Device: Max. 10W (without PoE)
• PoE power budget (depends on power input): 120W Max.

PoE Power Output
• Port 1 to 4
• IEEE802.3af+: up to 30W/port, 47 - 57VDC, 600mA Max.

Protection
• Reverse polarity protection
• Overload current protection
